Open Mouth Bag Granule Packing Machine Grain Feed Granule Automatic Bag Holding Sewing Bag Quantitative Packing And Filling Machine

Product Description

20-50kg full automatic bagging machine for open mouth bags,the equipment mainly includes: automatic quantitative weighing system (optional), automatic bag loading device, automatic bag storage, automatic bag transfer mechanism, bag guide mechanism, automatic folding/sewing/heat sealing mechanism, automatic labeling machine (optional) ), finished product conveyor, etc., which can realize automatic quantitative weighing, automatic bagging, automatic guide, bagging and sending labels, automatic bag top folding, automatic sewing/heat sealing and other operations. Equipped with safety/process interlock and production process monitoring and alarm functions.

Unit configuration: material silo, digital weigh-er, packing system, conveying system and sewing system.

◎Material: contact parts S.S 304 (or S.S 316L if need)

◎Package range:15-25kg;25-50kg

◎Packing speed: 8~12 bags/min

◎10.2inch touch Screen,support online detection,parameter setting,alarm functions etc.

◎Electric parts brand: Siemens/Schneider/Omron/Delta/ABB etc

◎Applied material: grain, animal feed, NPK or compound fertilizer, chemical material etc.

workshop overview

•

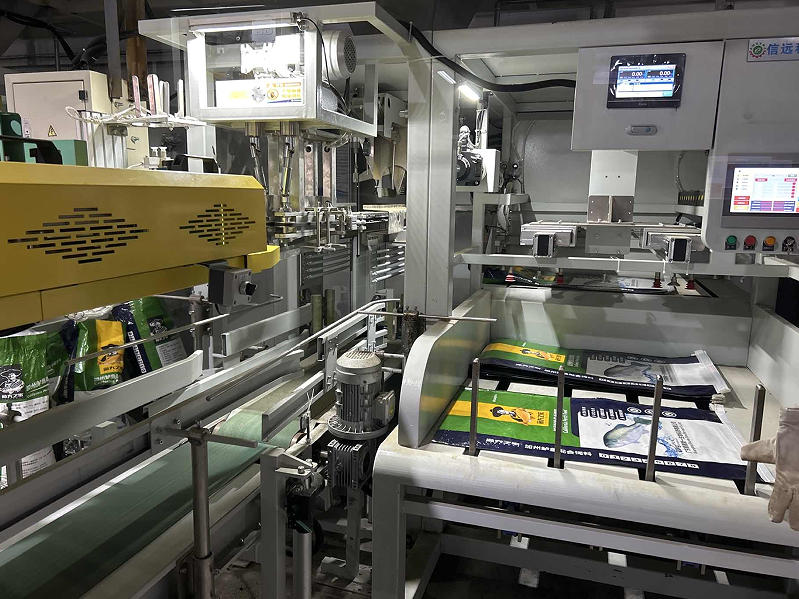

  Automatic open mouth bag packaging machine

  Professional packaging equipment supplier.
•

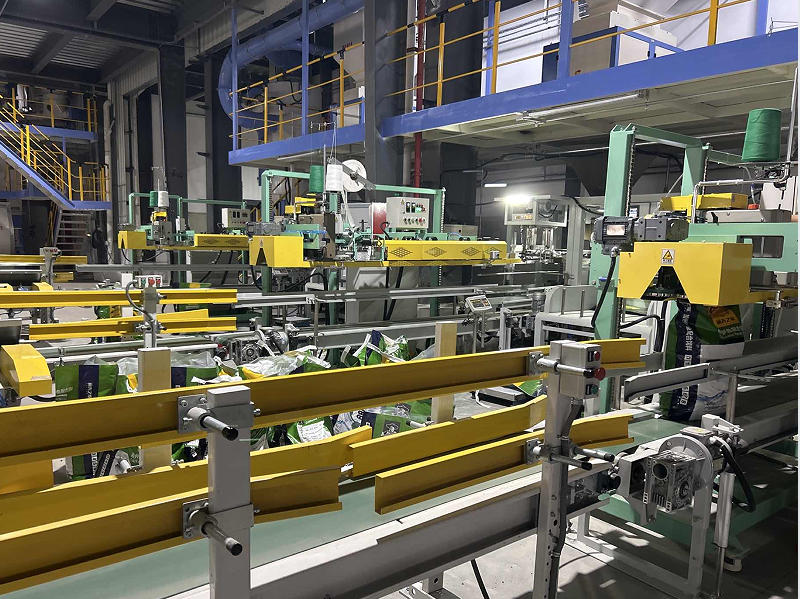

  Automatic packing production line

  China packing machine manufacturer.
•

  Palletizing Robot

  One-stop packaging solution expert.

Parameter

Machine Name	XYSL-Q series full automatic bagging machines
Model No.	XYSL—Q500;  XYSL-Q600
Machine configuration	XYSL-50weigher+XYSL-Q600 automatic packaging machine+folding sewing machine+product conveyor
Packing Speed	8-12 Bags / min( Varies depending on material status and measuring range)
Packing Range	15-25kg ;  25-50kg
Accuracy	±0.1% ～±0.3%（Varies depending on material status and measuring range）
Bag Size:	L:750-950  W:400-500mm  L:900-1050  W:500-650mm
Bag Type:	Woven bag (outer film), woven bag (PE inner bag)
Sealing Model:	Line seam, fold edge seam
Bagging mode	Hand bagging
Total Power:	8kw
Maximum air consumption:	2mm3/min



Product Display

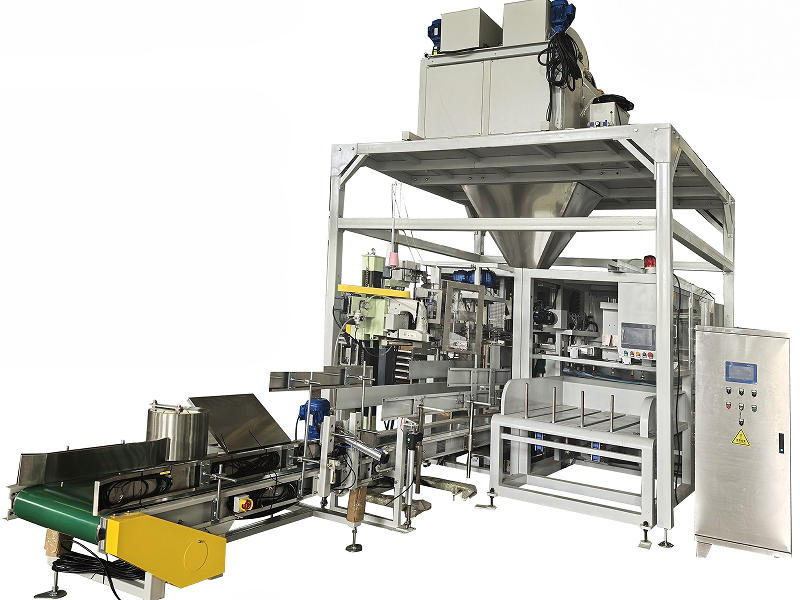

20-50kg full automatic bagging machine for open mouth bags

The open mouth bagging systems are designed for bagging free-flowing materials into open-mouth bags for applications between 20 ~ 50kg per bag. The systems are ideal for bagging flakes and granules from the Food, Feed, Pet Food, Chemicals, and Minerals industries.

Workflow:Place the packaging bag in the bag warehouse→  start the operation→ the bag picking mechanism automatically suck up the packaging bag→ sorting and correcting conveying→ opens the bag→ supports the bag→ giving the bag (loading the bag) → automatically clamps the bag→ material is automatically quantitatively weighed and filled into bags→ automatic bag release /bag holding/bag transfer→ automatic label feeding /folding /or heat sealing/or sewing→ entering the next process such as stacking on pallet and wrapping.

The whole bagging process is as follows: firstly, put the bags in the designated position, then the bags are sucked up with suction cups, opened, and loaded on the discharge port. After filling and weighing, the robot arms will send bags into the closing track to finish the subsequent steps.

When you use the semi-automatic bagging machine, you need workers manually load the open-mouth bags on the discharge port. Workers must manually send the bags into the sewing track when the filling is finished.

The fully automatic line achieves complete automation. It only needs workers to put the bags in the designated position. The machine automatically loads the bags, fills them, weighs them, sends them into the sewing machine, then shaping, inspecting, conveying, coding, palletizing, and wrapping. Finally, removing the pallets by forklift.



This futomatic packaging production line is an intelligent, high-efficiency integrated equipment specially designed for granular, powder and bulk materials. It integrates automatic weighing, bag feeding, filling, bag conveying, sealing and sewing in one continuous process.



With stable operation, high precision weighing and high-speed continuous working capacity, the production line greatly improves packaging efficiency and consistency. It features reliable performance, low failure rate, user-friendly operation and strong adaptability to various industrial packaging scenarios.

With high-precision weighing module, stable transmission system and durable sewing mechanism, the machine runs smoothly with low noise, low failure rate and long service life. It delivers accurate weighing, neat sealing and consistent packaging appearance, effectively avoiding errors and inconsistencies caused by manual operation.

This automated packaging system effectively solves the common pain points for manufacturing enterprises: low manual packaging efficiency, high labor cost, unstable weighing accuracy, uneven bag sealing, high labor intensity and potential on-site safety risks. By adopting our full-automatic packaging line, customers can significantly improve production efficiency, reduce labor input, standardize production process, improve product appearance quality, optimize workshop environment and enhance overall production capacity and market competitiveness.

FAQ
Q: Why should we choose your package machines over other distributors or intermediaries?
A: We are a direct manufacturing factory, which allows us to offer more competitive prices. Compared to distributors or intermediaries, we can provide more direct pricing and professional technical team to provide the best solutions.

Q:How to choose the most suitable packing machine?
A:Confirm what products will be packaged   *Confirm Bag Sizes(Length,Width) & Packaging Speed(How many bags need to be packaged per Min or Hour)

Q:Do you accept customization?
A:Yes, OEM service is available,we can customize solutions according to your exact requirements.

Q:What does your after-sale service entail?
A:For our customers, our machines are very durable and have 1-year warranty. Some machines provide remote program upgrade services. Also, after-sales services include maintenance,on-site training etc.

Q:Do you provide a set of operation and maintenance instructions?
A:Some customers buy our machines and would like to set them up independently. For this, we provide a detailed instruction manual and an instructional video. lt shows how to wire the machine, and the function of each wire, how to adjust the parameters, and more. lf you need.you can also contact us any time.
