Vertical Form Fill Seal Machines Bean Animal Food Feed Seed Powder Flour Rice Filling Machine Automatic Vffs Packing Machine

Product Description

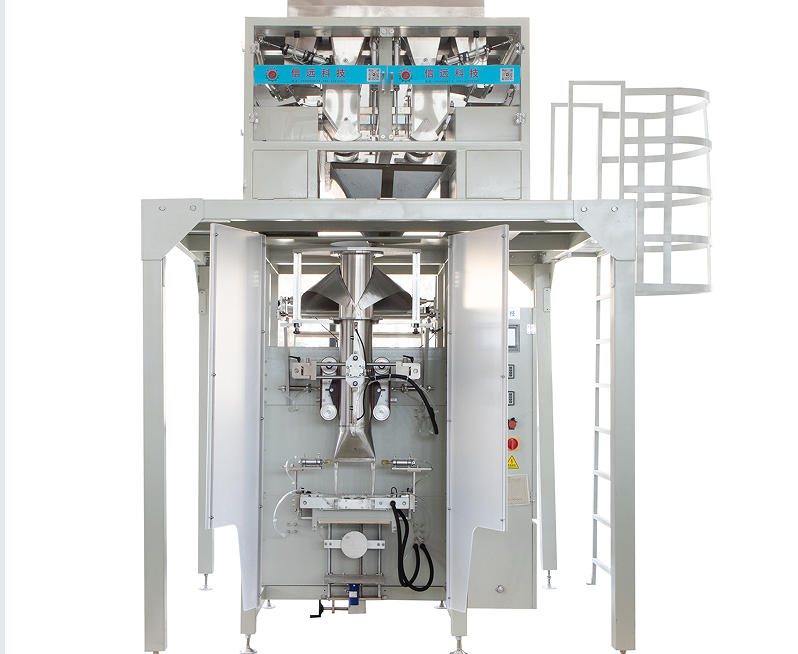

Our Vertical Form Fill Seal (VFFS) packaging machine is the ultimate solution for high-speed, automated packaging of granules, powders, liquids, and solid items. Designed for industries ranging from food and beverage to hardware and chemicals, it can automatically complete feeding, quantitative weighing, materials filling and packaging into bags , date printing, sealing packaging, and finished product output. It is mostly used in food processing and packaging line.
Performance
* Quick and consistent bag handling, filling, and posing thanks to servo motors
* Multi-language with quick automatic bag size changeovers
* Fast commissioning

Precise
* Adjustable spout opening to accommodate various bag sizes
* Bag detection on the filling spout to prevent spillage without interrupting the bagging process
* Total control of the bags for optimal seals and finished product quality

Workshop Overview

•

  Automatic open mouth bag packaging machine

  Professional packaging equipment supplier.
•

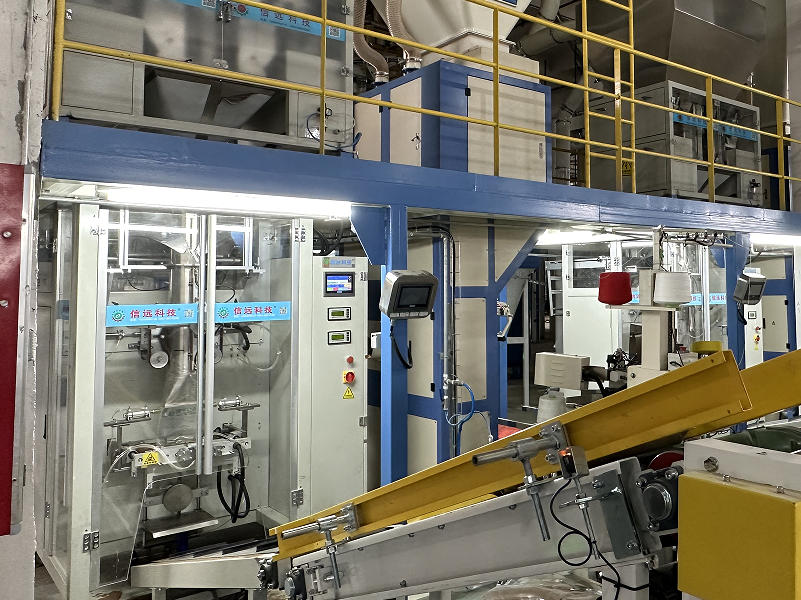

  Automatic packing production line

  China packing machine manufacturer.
•

  Palletizing Robot

  One-stop packaging solution expert.

Parameter

Machine Name Vertical Form Fill Seal Packaging Machine Model No. XYSL-420;XYSL-520;XYSL-800;XYSL-560H Weighing range 500g ~5000g Speed 15-60 Bags / min Accuracy ±0.05% ~ ±0.2%(Accuracy varies depending on material status) Bag Type back seal bag, stand-up bag, box bag, punched stand-up bag, punched box bag, punched back seal bag etc. Bag size L=50-320 W=60-200 L=100-350 W=80-250 L=100-450 W=80-390 Front =80-160mm  Side =50-80 mm edge sealing=5-10 mm L=50-340mm Air compressor 0.6Mpa  0.3----0.6m3/min Power Supply AC380V±10% 50Hz Optional equipment Weight sorter, Metal detector



Product Display



• High Efficiency: Achieve faster production cycles with continuous motion operation and precise servo motor control.

• Flexible Packaging: Easily adjust to create pillow bags, gusseted bags, stand-up pouches, or quad-seal bags with various film materials.

• Hygienic Design: Constructed with food-grade stainless steel, ensuring easy cleaning and compliance with international safety standards.

• User-Friendly HMI: The intuitive touchscreen interface allows for quick recipe changes and minimizes operator training time.

• Drive System: Equipped with servo motors for precise film feeding and high-speed sealing.

• Film Compatibility: Works with laminated films, PE, PET/AL/FOIL, and compostable materials.

• Bag Size Range: Adjustable bag length from 50mm to 400mm; width from 50mm to 300mm.

• Sealing System: Independent temperature control for jaw and back seal, ensuring strong, airtight seals even with dusty powders.

• Optional Add-ons: Integrate with multi-head weighers, auger fillers, piston fillers, or date printers for a complete packaging solution.



The machine adopts PLC, servo system, pneumatic control system, and human-machine interface touch screen as the driving core, which can meet the intelligent exchange of external signals; It has functions such as automatic bag making, date printing, measuring, filling, sealing, counting, and finished product conveying;
 The film pulling part is controlled by a servo system and the bag length is precise, meeting the sealing effect requirements of various materials and thicknesses of packaging materials;

 It can be combined with computer multi head combination scales, screw scales, electronic scales, measuring cup systems and other measuring equipment to achieve accurate measurement.
 Diversified packaging forms, including pillow shaped bags, three sided sealed bags, perforated pillow shaped bags, and multi pack half pack perforated bags;

The automatic packing machine can realize automatic operation without manual operation. •Adopt advanced sensing technology and weighing system to ensure accurate packing. It can adapt to different materials and bag sizes, with flexibility and adaptability.Monitor and adjust the packaging process in real time to ensure stable packaging quality.•Save human resources and improve work efficiency.

FAQ
Q: Why should we choose your package machines over other distributors or intermediaries?
A: We are a direct manufacturing factory, which allows us to offer more competitive prices. Compared to distributors or intermediaries, we can provide more direct pricing and professional technical team to provide the best solutions.

Q:How to choose the most suitable packing machine?
A:Confirm what products will be packaged   *Confirm Bag Sizes(Length,Width) & Packaging Speed(How many bags need to be packaged per Min or Hour)

Q:Do you accept customization?
A:Yes, OEM service is available,we can customize solutions according to your exact requirements.

Q:What does your after-sale service entail?
A:For our customers, our machines are very durable and have 1-year warranty. Some machines provide remote program upgrade services. Also, after-sales services include maintenance,on-site training etc.

Q:Do you provide a set of operation and maintenance instructions?
A:Some customers buy our machines and would like to set them up independently. For this, we provide a detailed instruction manual and an instructional video. lt shows how to wire the machine, and the function of each wire, how to adjust the parameters, and more. lf you need.you can also contact us any time.
