Automatic Bag-in-PP Woven Bag Secondary Baling Packing Bagging Machine for Small Pouch Product Into Big Bag Secondary Packaging Machine

Product Description

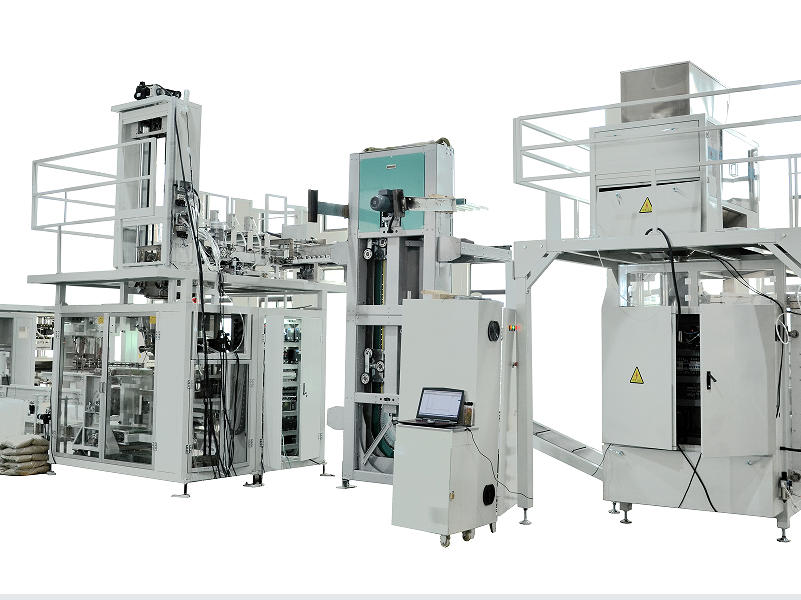

The secondary packaging unit is a fully automatic packaging process that automatically loads the products output from the upstream vertical packaging machine into woven bags and sews them for output according to the requirements (arrangement form, quantity, etc.).

This machine is mainly to complete putting the packaged pouch products by request neatly into bag .sewing bag out of the automatic packing process.And realize filling small bag into bags automatically .So saving manpower ,material and financial inputs reducing production costs .Improving production efficiency .The unit is widely used in washing powder,salt ,sugar,seeds milk powder and other powder granular industries.

Workshop Overview

•

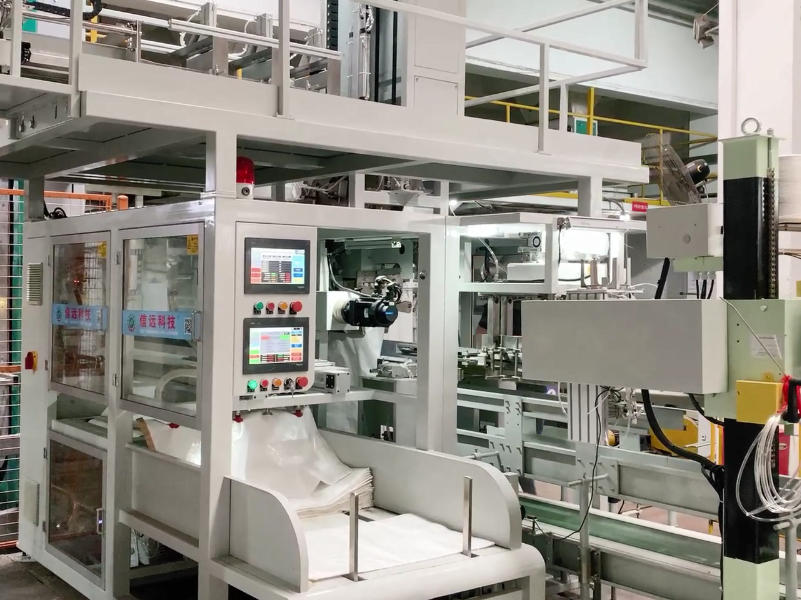

  Automatic open mouth bag packaging machine

  Professional packaging equipment supplier.
•

  Automatic packing production line

  China packing machine manufacturer.
•

  Palletizing Robot

  One-stop packaging solution expert.

Parameter

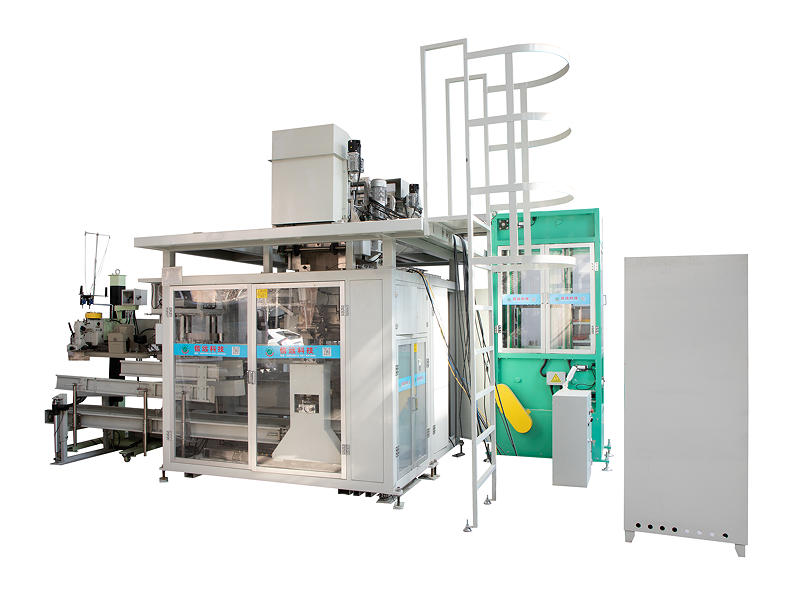

Machine Name	Bag in bag packing secondary packaging machine
Model No.	XYSL—ERB
Machine configuration	VFFS packing machine+conveyors+lifting machine+bagging machine+sewing machine etc.
Packing Speed	small bag40-180 Bags / min;big bag 4~14bags/min ( Varies depending on material status and measuring range)
Packing Range	25-50kg
Accuracy	±0.1% ～±0.3%（Varies depending on material status and measuring range）
Bag Size:	L:750-950  W:400-500mm  L:900-1050  W:500-650mm
Bag Type:	Woven bag (outer film), woven bag (PE inner bag)
Sealing Model:	Line seam, fold edge seam,thread stitching,hot sealing
Bagging mode	Automatic bagging
Power supply:	AC 380V 50HZ
Maximum air consumption:	0.8 m3/min





Product Display



The secondary packaging unit is a fully automatic packaging process that automatically loads the products output from the upstream vertical packaging machine into woven bags and sews them for output according to the requirements (arrangement form, quantity, etc.).

This machine is mainly to complete putting the packaged pouch products by request neatly into bag .sewing bag out of the automatic packing process.And realize filling small bag into bags automatically .So saving manpower ,material and financial inputs reducing production costs .Improving production efficiency .The unit is widely used in washing powder,salt ,sugar,seeds milk powder and other powder granular industries .

The automatic sugar secondary packaging machine is designed to work in synchronization with one or multiple vertical packaging machines, efficiently and neatly loading pouch products into baling bags, sealing, and removing them as per the order form. It enables fully automatic operation, saving labor, materials, and costs, while enhancing production efficiency and reducing transportation expenses.

This machine is suitable for the fully automatic packaging process of neatly loading small bag products into composite film plastic bags, and is widely used for packaging powdery and granular materials such as sugar,

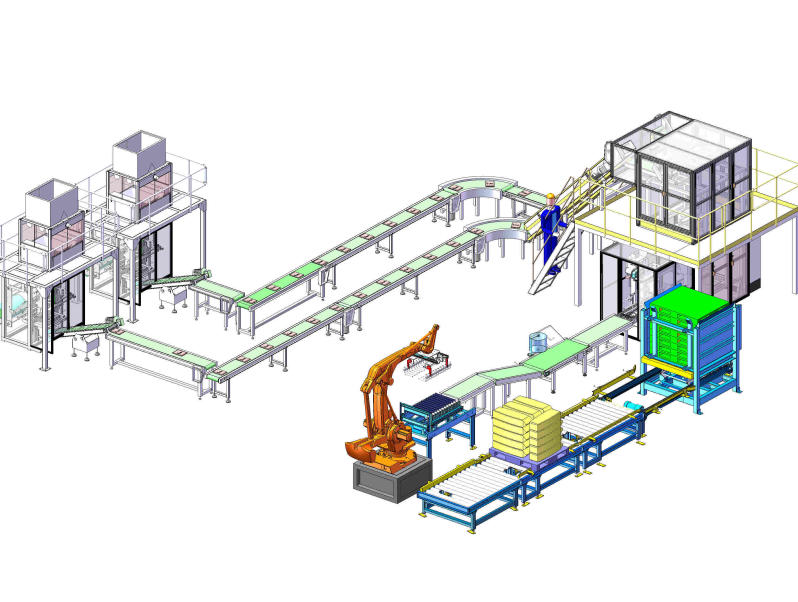

Equipment Composition

1. Automatic Metering Small Bag Packaging Machine

2. Small Bag Conveyor

3. Bag Clamping and Shaping Inclined Conveyor4. High-Speed Bag Pulling Conveyor

5. Bag Counting and Arranging Machine

6. Fully Automatic Woven Bag Loading and Packaging Machine

7. Automatic Bag Sewing Machine

8. Automatic Bag Reversing Conveyor

9. Woven Bag Large Bag

Shaping Machine

10. Pallet Conveyor System

11. Robotic Palletizing System



Advantage

1 This packing unit can realize bag feeding bag open counting filling moving output sewing fully automatically

2 The unit is operated through the touch screen operation specifications change maintenance are very convenient safe and reliable .

3 Can be arranged to achieve a variety of forms to meet different needs of customers

Packing form : Different packing form need different packing machine unit.

FAQ
Q: Why should we choose your package machines over other distributors or intermediaries?
A: We are a direct manufacturing factory, which allows us to offer more competitive prices. Compared to distributors or intermediaries, we can provide more direct pricing and professional technical team to provide the best solutions.

Q:How to choose the most suitable packing machine?
A:Confirm what products will be packaged   *Confirm Bag Sizes(Length,Width) & Packaging Speed(How many bags need to be packaged per Min or Hour)

Q:Do you accept customization?
A:Yes, OEM service is available,we can customize solutions according to your exact requirements.

Q:What does your after-sale service entail?
A:For our customers, our machines are very durable and have 1-year warranty. Some machines provide remote program upgrade services. Also, after-sales services include maintenance,on-site training etc.

Q:Do you provide a set of operation and maintenance instructions?
A:Some customers buy our machines and would like to set them up independently. For this, we provide a detailed instruction manual and an instructional video. lt shows how to wire the machine, and the function of each wire, how to adjust the parameters, and more. lf you need.you can also contact us any time.
