Animal Feed Pellet Filling Packing Machine 20/50kg Automatic Rice Packing Bagging Machine

Product Description

This machine is suitable for semi-automatic packaging of livestock feed, submerged fish feed, premix and so on.Compared with automatic bag packing machine,its done by hand bagging→automatic filling,moving,labeling,sewing etc.

Its designed to solve the problems of less available workers, higher labor cost and unstable manual operating quality for granule material big bag packing requirement. And the relevant equipments like checker weight and robot palletizing system are also available.

Unit configuration: material silo, digital weigh-er, packing system, conveying system and sewing system.

◎Material: contact parts S.S 304 (or S.S 316L if need)

◎Package range:15-25kg;25-50kg

◎Packing speed: 8~12 bags/min

◎10.2inch touch Screen,support online detection,parameter setting,alarm functions etc.

◎Electric parts brand: Siemens/Schneider/Omron/Delta/ABB etc

◎Applied material: grain, animal feed, NPK or compound fertilizer, chemical material etc.

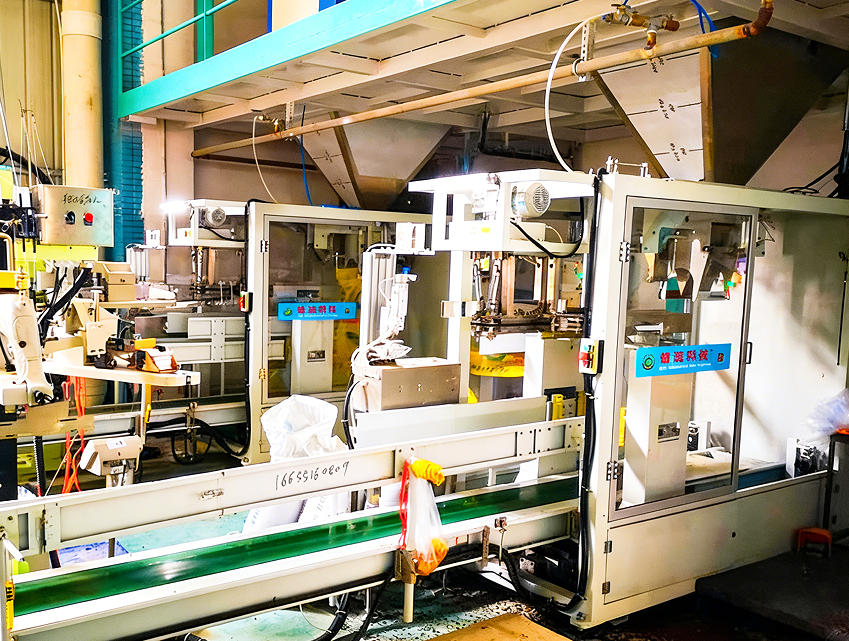

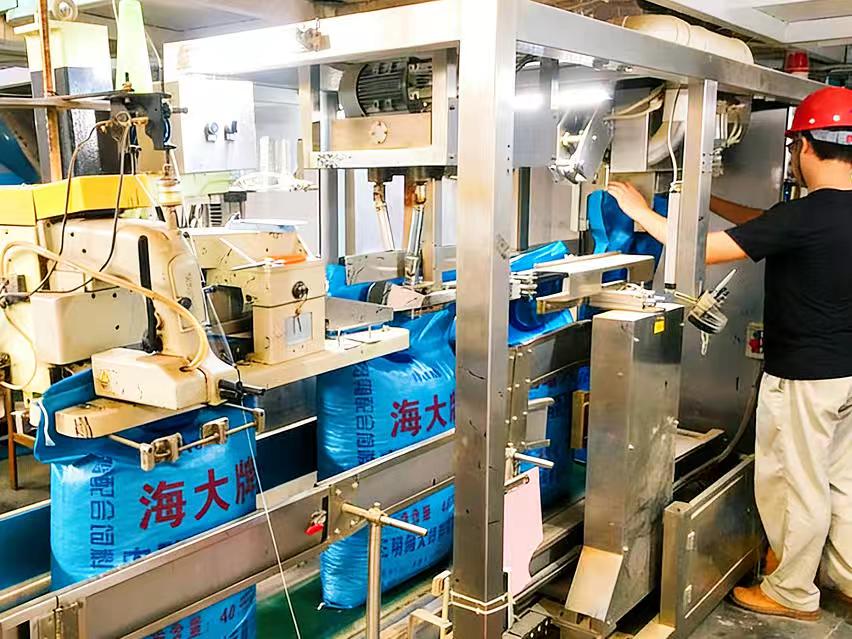

workshop overview

•

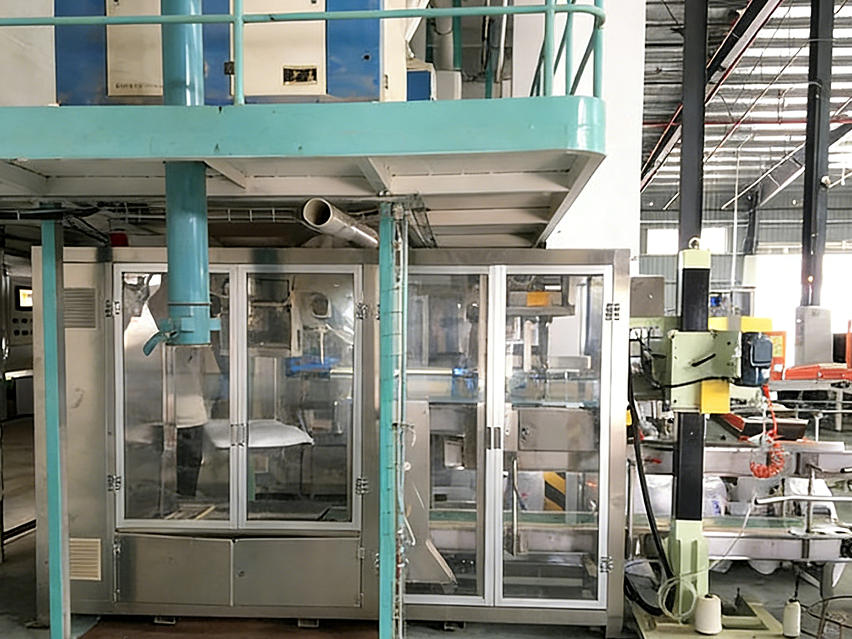

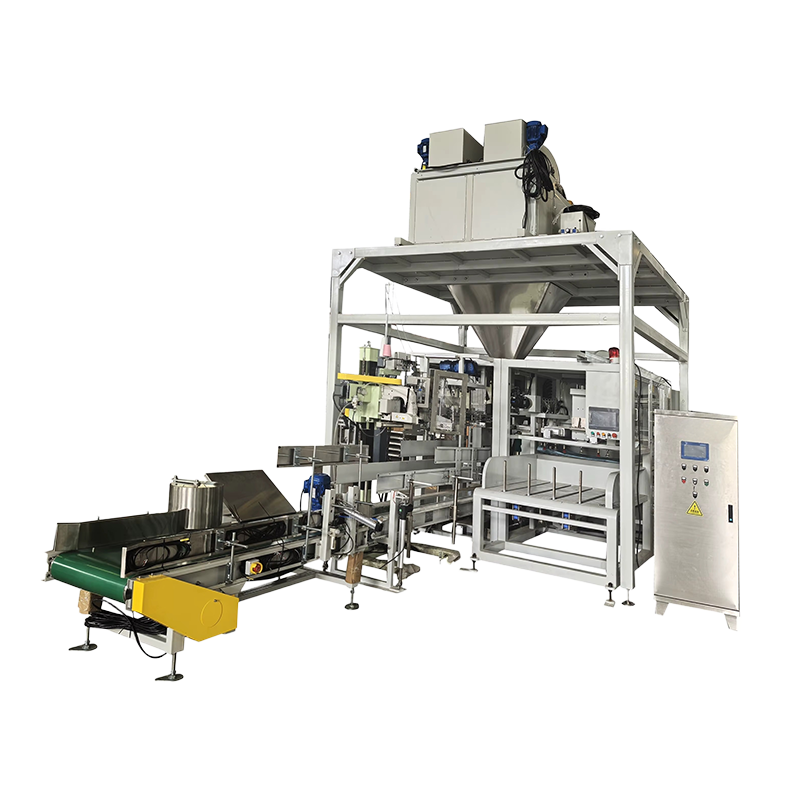

  Automatic open mouth bag packaging machine

  Professional packaging equipment supplier.
•

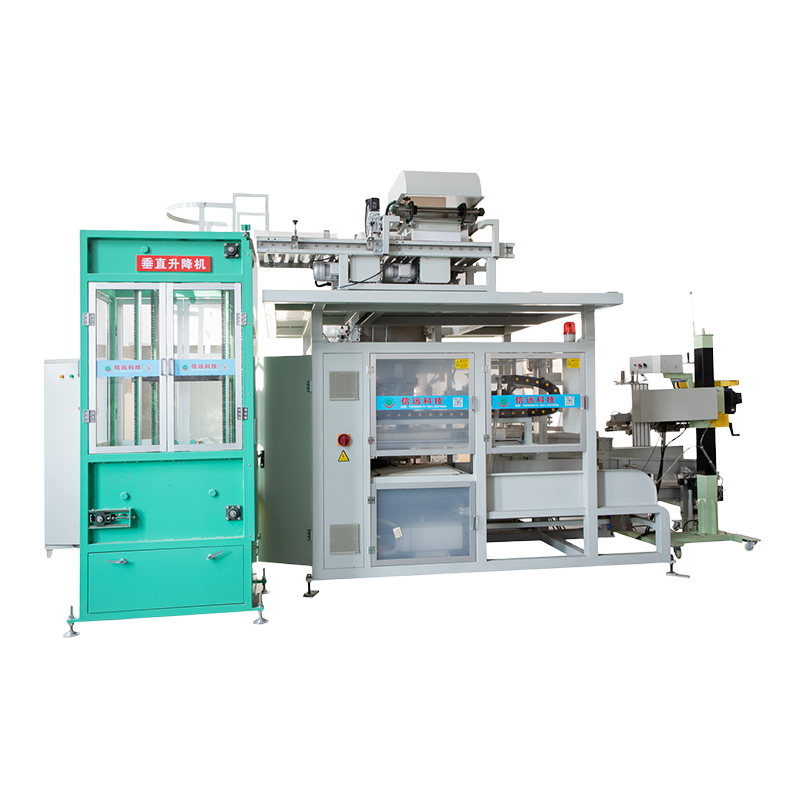

  Automatic packing production line

  China packing machine manufacturer.
•

  Palletizing Robot

  One-stop packaging solution expert.

Parameter

Machine Name	XYSL-B series semi-automatic bag packing machines
Model No.	XYSL—B500;  XYSL-B600
Machine configuration	XYSL-50weigher+XYSL-B600 semi-automatic packaging machine+folding sewing machine+product conveyor
Packing Speed	8-12 Bags / min( Varies depending on material status and measuring range)
Packing Range	15-25kg ;  25-50kg
Accuracy	±0.1% ～±0.3%（Varies depending on material status and measuring range）
Bag Size:	L:750-950  W:400-500mm  L:900-1050  W:500-650mm
Bag Type:	Woven bag (outer film), woven bag (PE inner bag)
Sealing Model:	Line seam, fold edge seam
Bagging mode	Hand bagging
Total Power:	8kw
Maximum air consumption:	2mm3/min



Product Display

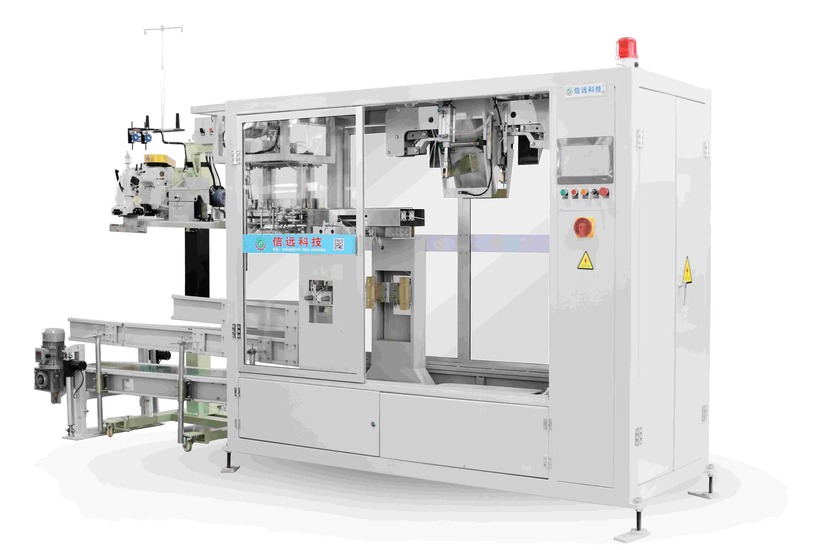

20-50kg Semi- automatic bagging machine for open mouth bags

The open mouth bagging systems are designed for bagging free-flowing materials into open-mouth bags for applications between 20 ~ 50kg per bag. The systems are ideal for bagging flakes and granules from the Food, Feed, Pet Food, Chemicals, and Minerals industries.

Automatic Operation: After manually loading the bag, the machine automatically feeds, opens, fills, weighs, seals, and discharges the bag.

High-Speed Packing: Achieves 15 bags per minute, perfect for high-volume packaging operations.

Touchscreen PLC Control System: Simplifies operation and setup with easy-to-use controls for quick adjustments to packaging specifications.



Greatly Save labor and increase production efficiency

This futomatic packaging production line is an intelligent, high-efficiency integrated equipment specially designed for granular, powder and bulk materials. It integrates automatic weighing, bag feeding, filling, bag conveying, sealing and sewing in one continuous process.



With stable operation, high precision weighing and high-speed continuous working capacity, the production line greatly improves packaging efficiency and consistency. It features reliable performance, low failure rate, user-friendly operation and strong adaptability to various industrial packaging scenarios.



By replacing manual packaging and sewing, this equipment effectively solves the problems of low manual efficiency, large labor cost, unstable weighing accuracy, inconsistent packaging quality, high labor intensity and potential safety risks in the production process. It helps enterprises reduce labor input, improve production standardization, ensure product quality stability, optimize on-site working environment and enhance overall production capacity and economic benefits.

Working Process: Automatic weighing - Manual bagging - Material filling and compacting - Dust removal - Bag holding and conveying - Automatic labeling - Folding and sewing the edges - Smooth connection with the finished product output and palletizing system）

The well-sealed finished bags are conveyed to the designated area, completing the whole automated packaging process.

Whole packing system consist of

*Double-bucket scale

*Working platform

*Hopper

*Semi-automatic bagging machine

*Vertical bag conveyor

*Sewing machine

FAQ
Q: Why should we choose your package machines over other distributors or intermediaries?
A: We are a direct manufacturing factory, which allows us to offer more competitive prices. Compared to distributors or intermediaries, we can provide more direct pricing and professional technical team to provide the best solutions.

Q:How to choose the most suitable packing machine?
A:Confirm what products will be packaged   *Confirm Bag Sizes(Length,Width) & Packaging Speed(How many bags need to be packaged per Min or Hour)

Q:Do you accept customization?
A:Yes, OEM service is available,we can customize solutions according to your exact requirements.

Q:What does your after-sale service entail?
A:For our customers, our machines are very durable and have 1-year warranty. Some machines provide remote program upgrade services. Also, after-sales services include maintenance,on-site training etc.

Q:Do you provide a set of operation and maintenance instructions?
A:Some customers buy our machines and would like to set them up independently. For this, we provide a detailed instruction manual and an instructional video. lt shows how to wire the machine, and the function of each wire, how to adjust the parameters, and more. lf you need.you can also contact us any time.
