ROBOT BAG PALLETIZER

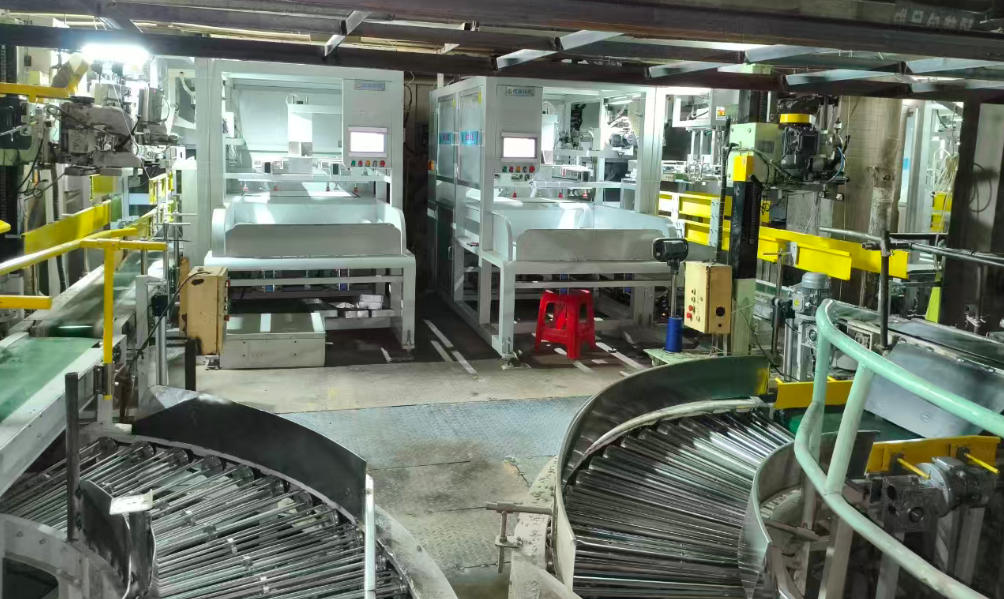

This bagging system can complete a whole set of processing procedures such as material conveying, weighing, filling, packaging, bag flattening, sealing, sewing, and conveying.

So that, they can realize a high degree of automation without human involvement.

This type of palletizing system uses a ABB or Kuka palletizing robot in a single or dual stacking configuration.  In this type of system an operator is still required to load empty pallets into the bag stack zone for the palletizing robot arm to stack bags upon. Safety fences surround the end of the bagging line, as well as the robot to ensure that the robot is not active in the zone where a forklift operator retrieves a filled pallet.

Working Process:Empty pallets with slip sheets are placed manually by an operator in a designated place on the floor to the left or right of the palletizing robot arm.

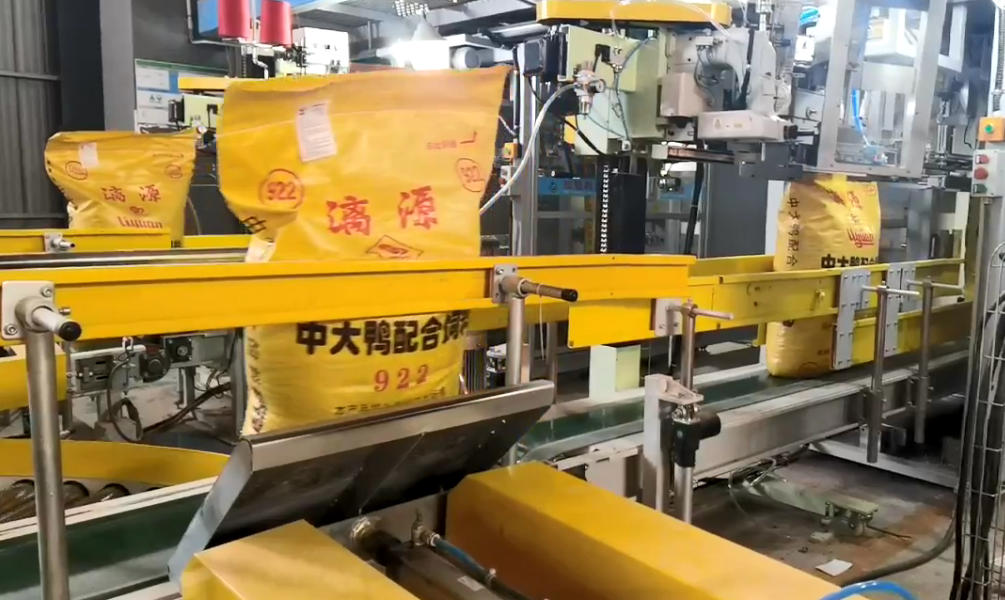

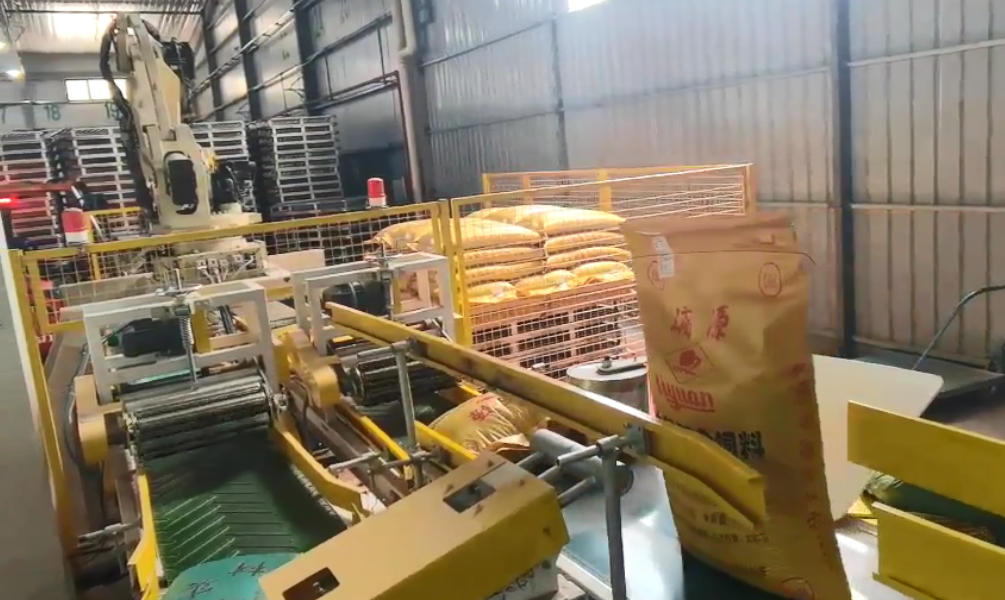

Filled bags are conveyed through a flattening conveyor, accumulation conveyor, squaring conveyor, and finally to a pick conveyor at the end of the bagging line.

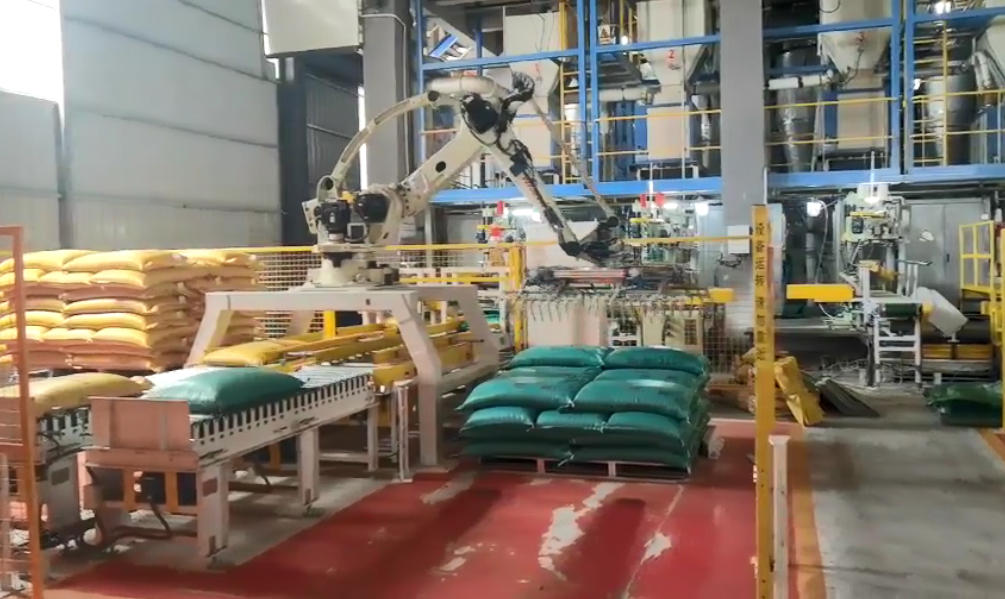

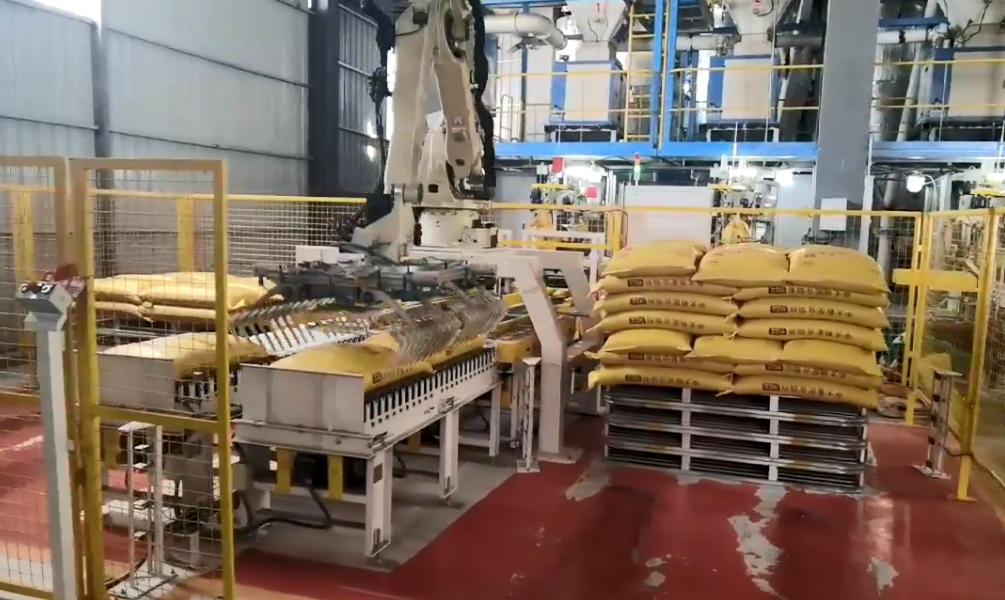

The palletizing robot arm picks up the bags and uniformly stacks them on the empty pallet. Once the pallet is full, a forklift operator will drive into the cage to retrieve the full pallet.

If the system allows for dual stacking, the robot will start to stack bags on the empty pallet to the left or right of the robot, while the forklift operator safely retrieves the full pallet.
